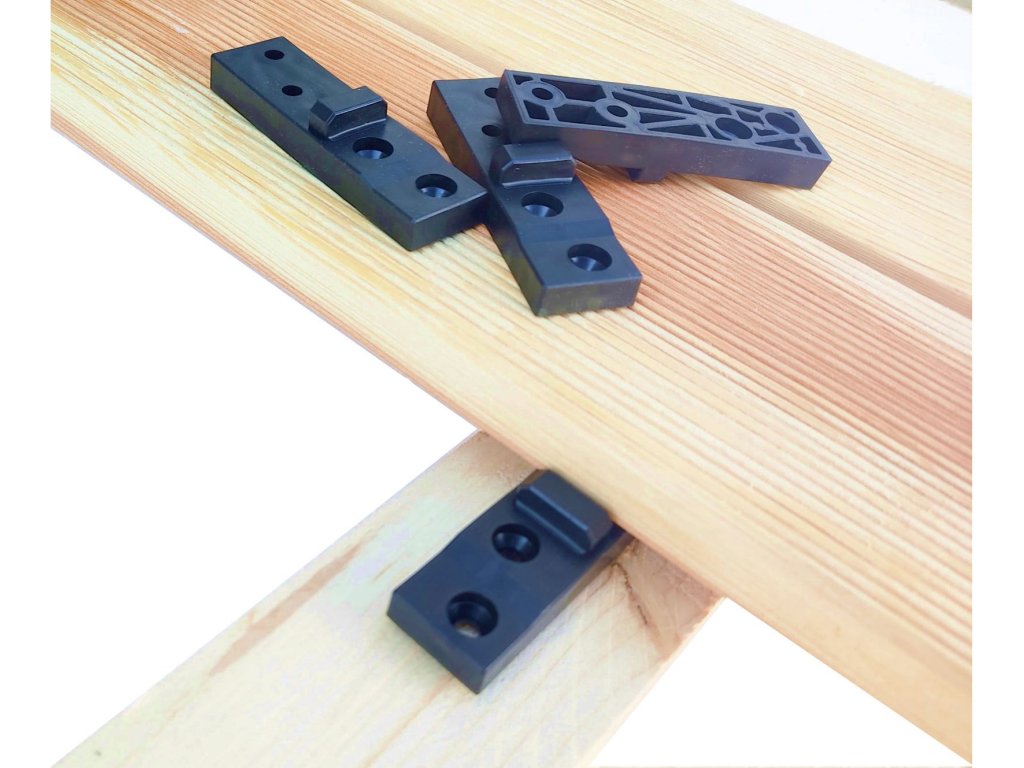

Hidden Decking Spacer Clip

Product detailed description

Hidden Decking Spacer Clip

When ordering 100 pcs of connectors, you will receive:
1 package containing:
– 100 pcs of spacer clips
– 400 pcs of stainless steel screws
– 1 TX20 bit

For 200 pcs, the quantity doubles; for 300 pcs, it triples, etc.

Dimensions:

Length: 77 mm
Width: 22 mm
Height: 9 mm

Available joint widths:
Choose between 2 mm, 4 mm, or 7 mm.

Screws for wooden substructure:

For every 100 pcs of clips, the set includes:
– 400 pcs of A2 stainless steel screws (TX20, 4.5 × 25 mm)
– 1 TX20 bit

Quantities double with 200 pcs and triple with 300 pcs, etc.

Screws for aluminum substructure:

For every 100 pcs of clips, the set includes:
– 200 pcs of A2 stainless steel screws TX20 (4.5 × 25 mm)
– 200 pcs of A2 stainless self-drilling screws TX20 (4.2 × 25 mm)
– 1 TX20 bit

Quantities double with 200 pcs and triple with 300 pcs, etc.

Consumption:

Depending on the board width, approximately 33–35 clips per 1 m² are required.

Features:

– Frost-, weather-, and UV-resistant
– Suitable for smooth decking boards ≥ 20 mm or grooved boards ≥ 22 mm
– Designed for hidden fastening of decking boards, ensuring a clean, screw-free surface
